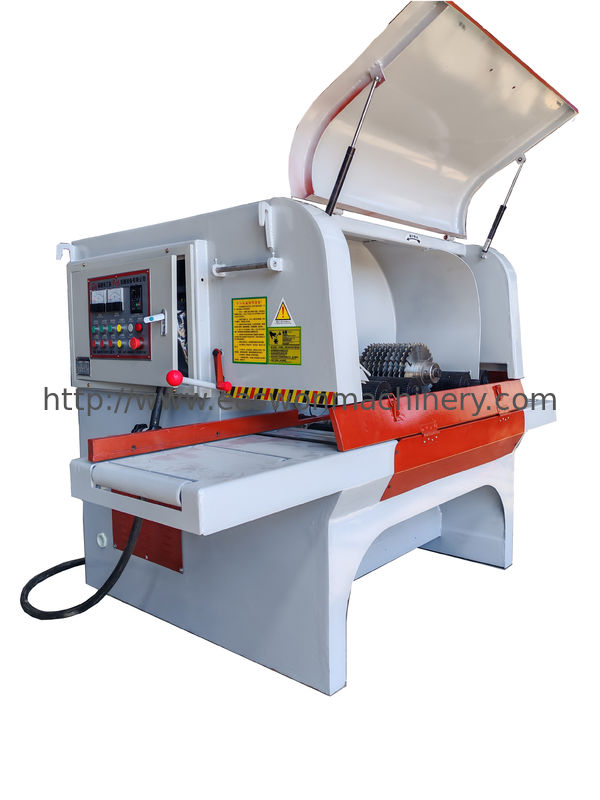

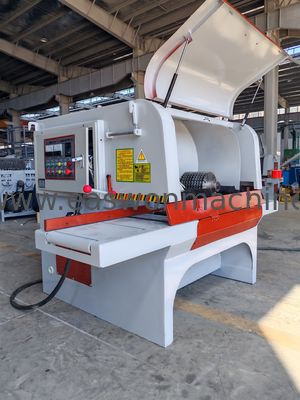

MGJF12x35 multiple rip saw machine For Processing wood panel
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Easwon |
| प्रमाणन: | CE |
| मॉडल संख्या: | MGJF12X35 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 सेट |
|---|---|
| मूल्य: | negotiated |
| पैकेजिंग विवरण: | लकड़ी का केस |
| प्रसव के समय: | 25 दिन |
| भुगतान शर्तें: | एल/सी, टी/टी |
| आपूर्ति की क्षमता: | प्रति माह 50 सेट |
|
विस्तार जानकारी |
|||
| नमूना: | MGJF12X35 | आरा की मोटाई: | 30-120 |
|---|---|---|---|
| आरी चौड़ाई: | 350 मिमी | भोजन की गति: | 0-8 मी / मिनट |
| स्पिंडल डायम्टर: | 70 मिमी | मुख्य मोटर शक्ति: | 30kW + 30kW |
| खिला मोटर शक्ति: | 1.1KW x 2 | वर्किंग टेबल की लंबाई: | 800 मिमी मोर्चा, 400 मिमी पीछे |
| स्थिति: | नया | गारंटी: | 1 वर्ष |
| प्रमुखता देना: | wood panel rip saw machine,multiple rip saw for woodworking,band saw machine for wood panels |
||
उत्पाद विवरण
MGJF12X35 Automatic Multiple Rip Saw
MGJF12X35 Automatic Multiple Rip Saw is a high-efficiency woodworking machine designed for precise, simultaneous cutting of wood into multiple strips or boards. It features adjustable blades for customizable widths and is suitable for processing various wood types, including softwood and hardwood. Widely used in furniture manufacturing, flooring production, and timber processing, it ensures high productivity, accuracy, and minimal material waste, making it an essential tool for large-scale woodworking operations.
Specifications:
| Technical specification | Unit | MGJF12X35 |
| Main motor power | kw | 30 + 30 |
| Spindle speed | r/min | 2800 |
| Feeding motor power | kw | 1.1kw x 2 |
| Sawing thickness | mm | 30-120 |
| Sawing width | mm | <350 |
| Spindle diameter | mm | 70 |
| Feeding speed | m/min | 0-8 |
| Max. saw blade quantity | pcs | 10 |
| Working table length | mm | 800 front, 400 back |
| Saw blade size | mm | 230x2.6x70x36P+4T |
| Cooling water pressure | Mpa | 0.3-0.6 |
| Cooling way of saw blade | / | Axis water spray |
| Overall dimension | mm | 2000x1500x1400 |
| Net weight | kg | 2200 |
Package and shipping:
The rip saw is packed by plywood case, which is suitable for FCL and LCL shipping.
After sales services:
1. Warranty: 1 year
2. Lifetime upgrades and consulting services
3. 24-hour servic hot line for consulting and solving the problems
4. Provide product design and solution within 24 hours
5. Supply operational manual and maintance manual in English.
